REMA Pneumatic Crosscutting Saw Type 50C
Including pneumatically operated turnover stops on the out-feed table
| Technical data | |
|---|---|
| Saw Blade Diameter | 500 mm |
| Max: Sawing Height | 160 mm |
| Max: Sawing Width | 585 mm |
| Motor Power | 6 kW |
| Spindle Rotation Speed | 3000 rpm |
| Spindle Tip Diameter | 30 mm |
| Freq of Operating Cycles (stepless regulation) | 0-15 cycles/min |
| Extraction Outlet Diameter – Top Cover | 125 mm |
| Extraction Outlet Diameter – Bottom | 125 mm |
| Normal Pressure of Compressed Air | 0,6 MPa |
| Air Compressed Request | 30 m3/h |
| Air Request (Top Extraction System) | 1300 m3/h |
| Air Request (Bottom Extraction System) | 1300 m3/h |
| Height of Table Surface | 894 mm |
| Weight | 700 kg |

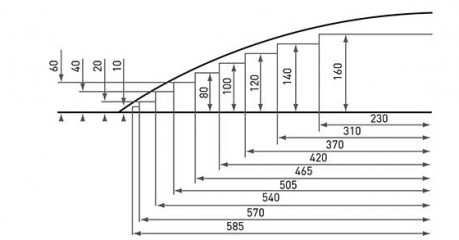

Cutting Parameters
